Product Overview

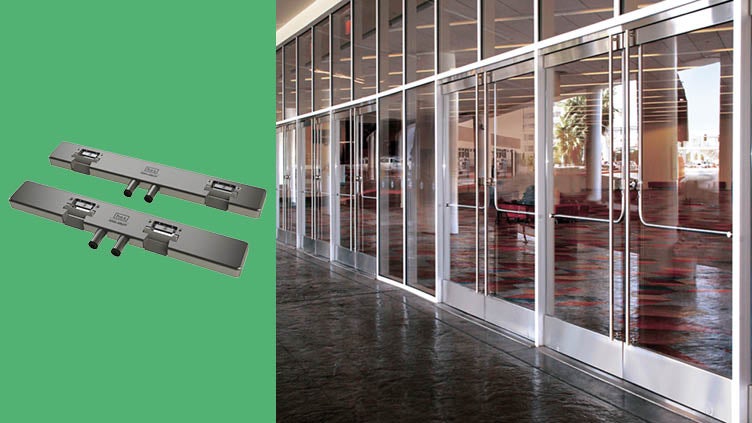

The innovative HES 9200 electric strike sets a new industry standard for glass openings with a tubular, vertical rod exit device. The 9200 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation. Integrated adjustability provides optimal latch positioning to accommodate demanding installations and the low-profile design eliminates the need to add to or modify the frame. With adaptable voltage sensing technology, no wiring selection is required, allowing the product to function in ranges from 12 through 24 volts. Additionally, field selectable fail safe/fail secure functionality and monitoring options provide maximized versatility. The 9200 exceeds Grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.
ASSAABLOY_EMS_POEFriendly blk_ProductIconPoE Friendly
ASSAABLOY_EMS_DualVoltage blk_ProductIconDual Voltage
ASSAABLOY_EMS_FieldSelectable_FailSecureFailSafe blk_ProductIconFail Secure/Fail Safe
ASSAABLOY_EMS_5YearWarranty blk_ProductIconSecuriCare Warranty
ASSAABLOY_EMS_BurglaryRated blk_ProductIconBurglary Rated
ASSAABLOY_EMS_Grade1 blk_ProductIconGrade 1
ASSAABLOY EMS Outdoor Rated Black Product IconOutdoor Rated

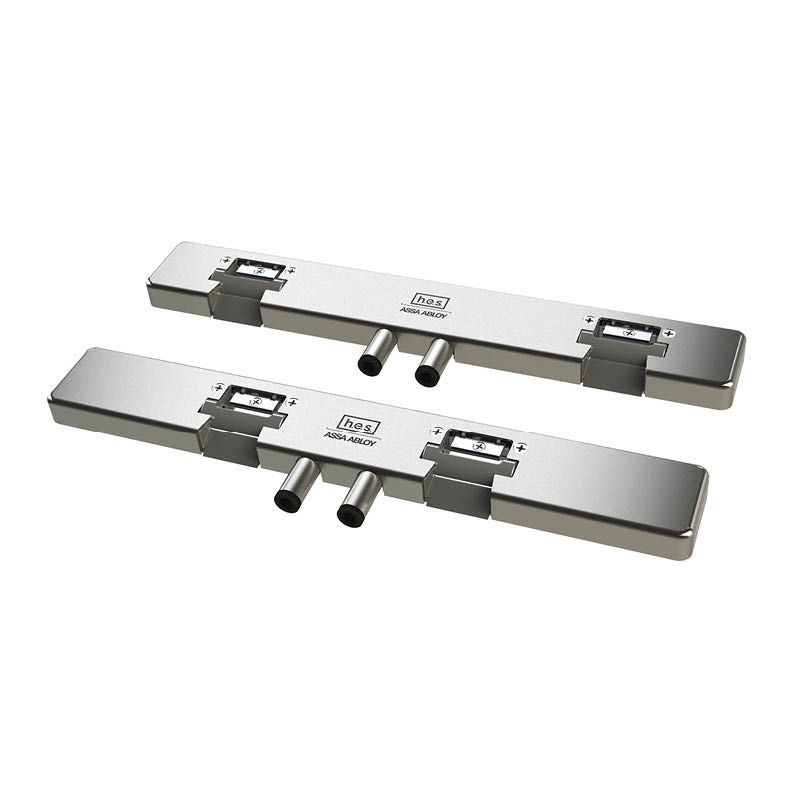

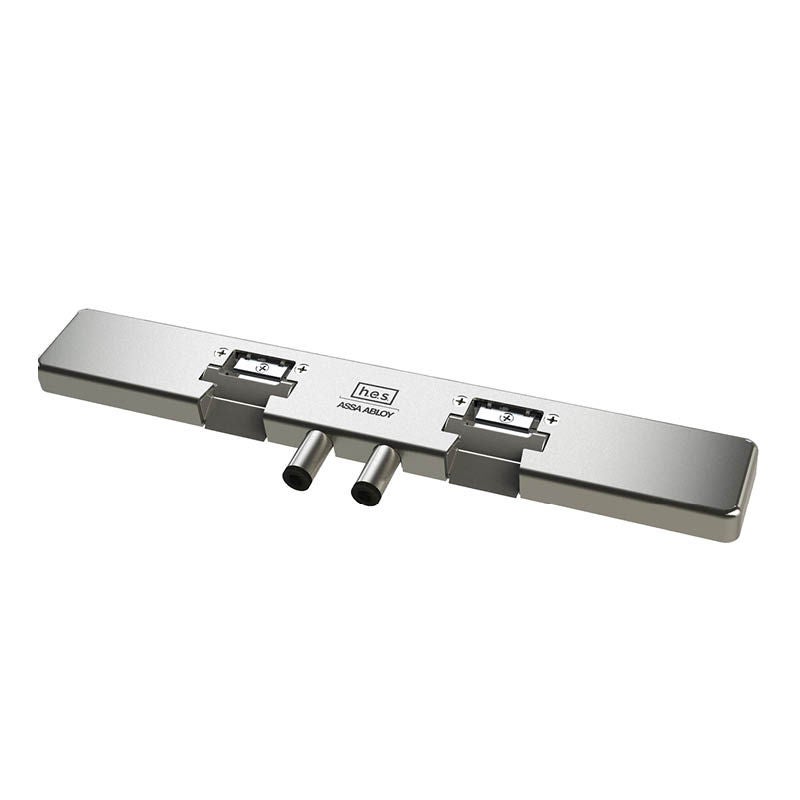

Product Image
HES 9200 Series Surface Mounted Electric Strike Feature 1
HES 9200 Series Surface Mounted Electric Strike Features

Product Features

  • Retro-mount using existing header prep
  • No cutting required

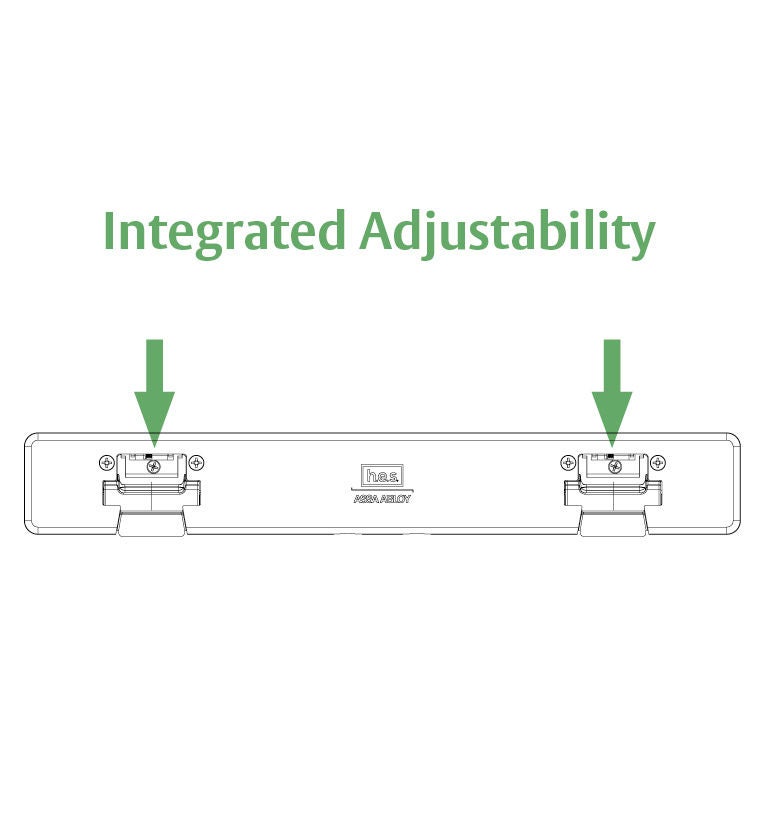

  • Integrated adjustability
  • Adaptable voltage sensing technology (12-24 VDC)
  • Factory configured or field installable monitoring
  • Static strength 1,500 lbs
  • Dynamic strength to 70 ft-lbs
  • Endurance 1,000,000 cycles
  • Field selectable fail secure/fail safe
  • Quiet operation
  • Stainless steel construction
  • SecuriCare five-year, no-fault, no questions asked warranty
Application
  • Adjustability : Fully Adjustable
  • Surface Mounting : Yes
  • Frame Material : Aluminum|Hollow Metal|Wood
  • Shim Type : Field Adjustable
  • Latchbolt Accommodation : 5/8" - 3/4"
Electrical
  • Voltage : 12/24
  • Monitoring Installation : Factory Configured|Field Installable
  • Monitoring Options : Latchbolt Monitoring|Latchbolt Strike Monitor
Strength & Durability
  • Endurance : 1000000
  • Dynamic Strength (lbs) : 70
  • Tamper Resistant : Yes
  • Fail Safe | Fail Secure : Field selectable fail safe/fail secure
General Specifications
  • Warranty : SecuriCare five-year, no fault, no questions asked warranty
  • Lock Type : Exit Device

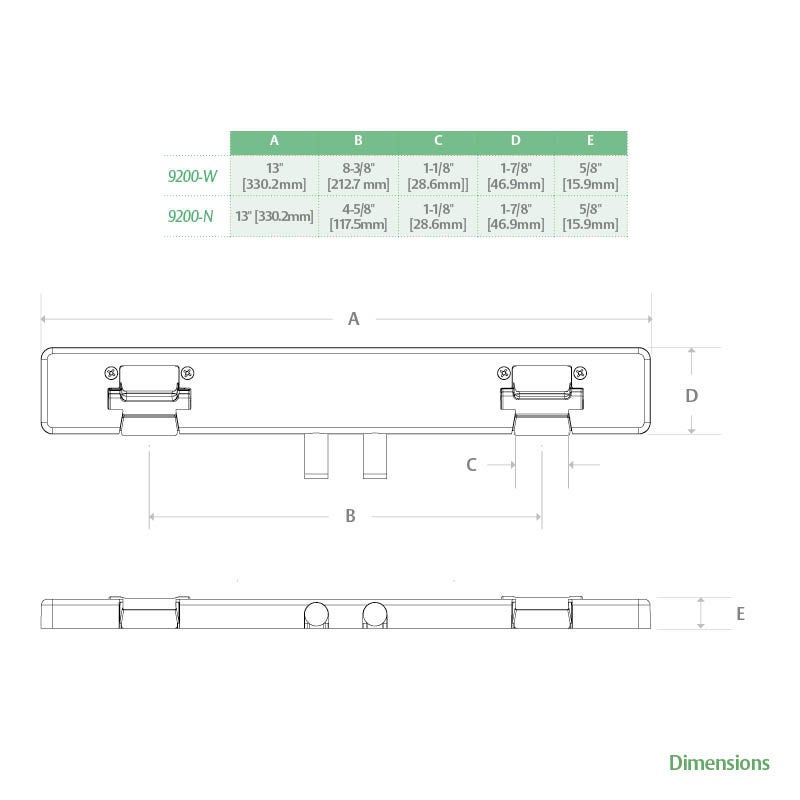

Weights & Dimensions
  • Strike Body Depth (in) : 0-5/8"
  • Strike Body Height (in) : 13"
  • Strike Body Width (in) : 1-7/8"
Certifications
  • ANSI/BHMA A156.31, Grade 1
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL 294 - Standard for Access Control System Units
  • UL 305 - Standard for Panic Hardware
