610 Series Cabinet Lock

The versatile, compact, cost effective cabinet lock to secure drawers or doors.

Add to List
tab

Product Overview

The HES 610 Cabinet Lock can be triggered by a simple relay as part of an access control system or with a stand-alone keypad. The HES 610 is available with or without locked state monitoring and has over 200 lbs of holding force.
ASSAABLOY_EMS_SwingingDoor_blk_ProductIconSwinging Door
ASSAABLOY_EMS_Drawers blk_ProductIconDrawers
ASSAABLOY_EMS_FieldSelectable_FailSecureFailSafe blk_ProductIconFail Secure/Fail Safe
ASSAABLOY_EMS_POEFriendly blk_ProductIconPoE Friendly
ASSAABLOY_EMS_3YearWarranty blk_ProductIconSecuriCare Warranty
ASSAABLOY_EMS_DualVoltage blk_ProductIconDual Voltage
ASSAABLOY_EMS_BatteryBackup blk_ProductIconBattery Backup

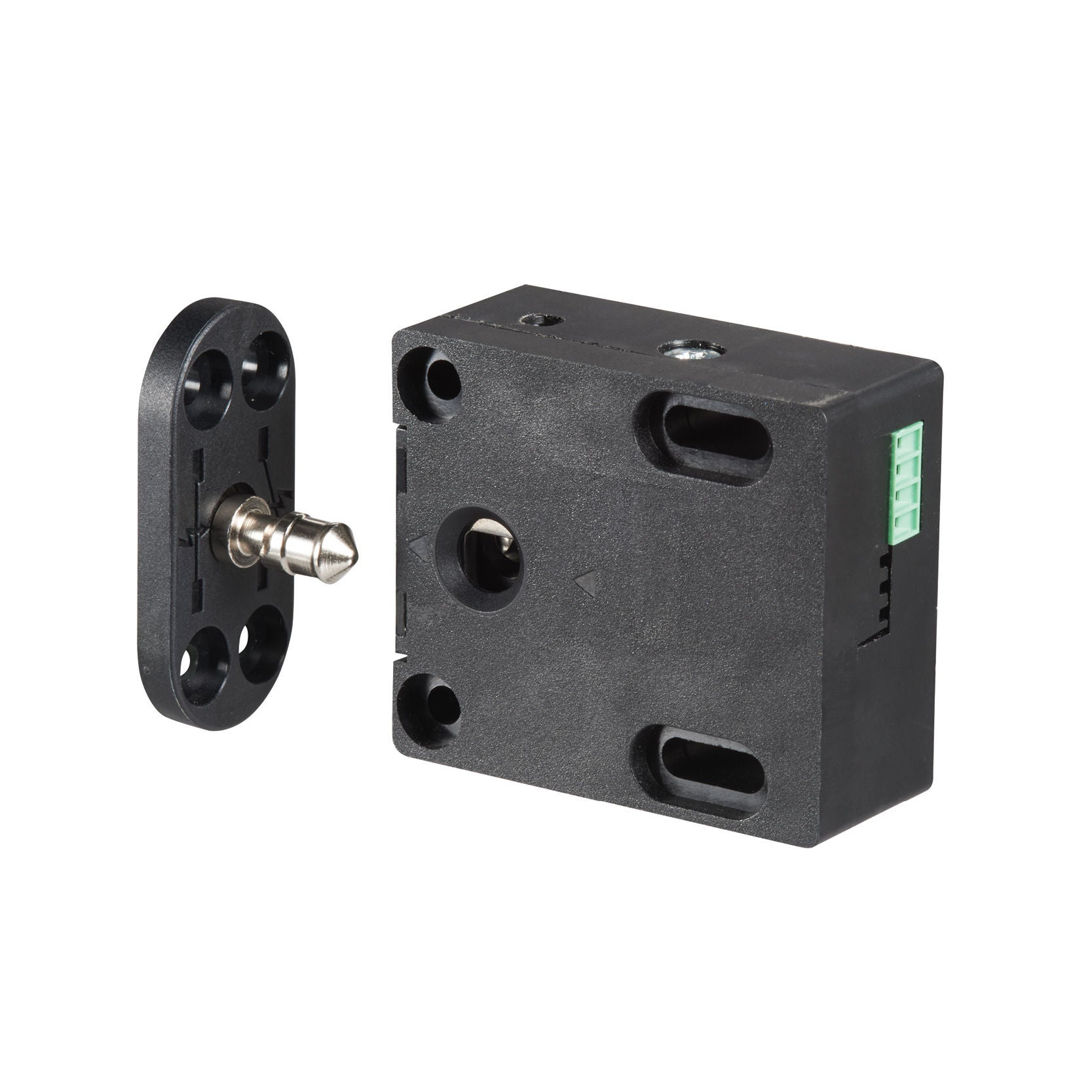

Product Image
tab_32741928
HES 610 Electrified Cabinet Lock Feature Image 1
HES 610 Electrified Cabinet Lock Feature Image 2

Product Features

  • Fail safe / fail secure (field selectable)

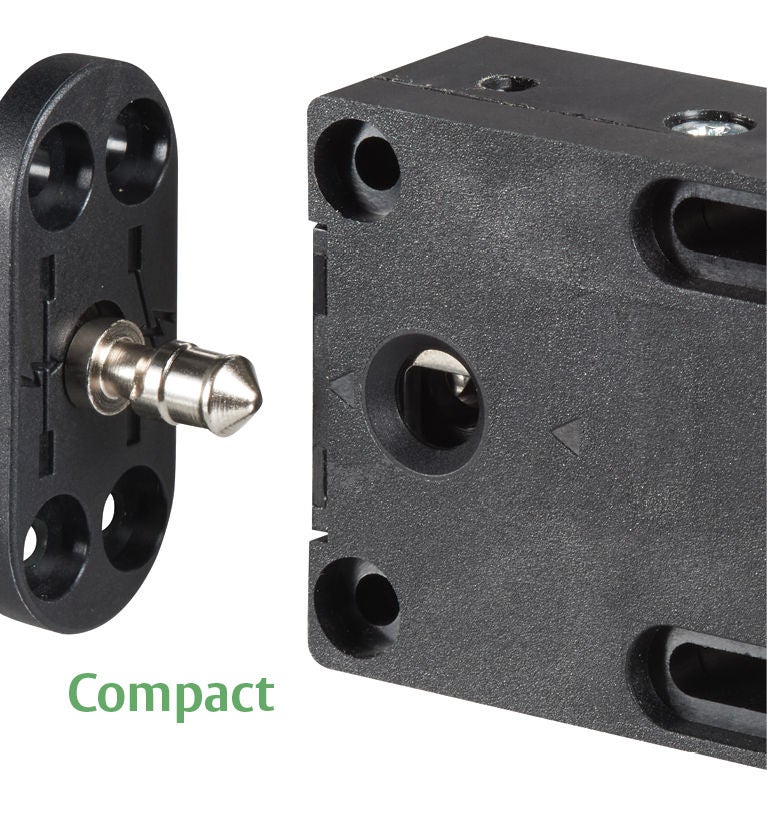

  • Compact design fits most drawers and cabinets

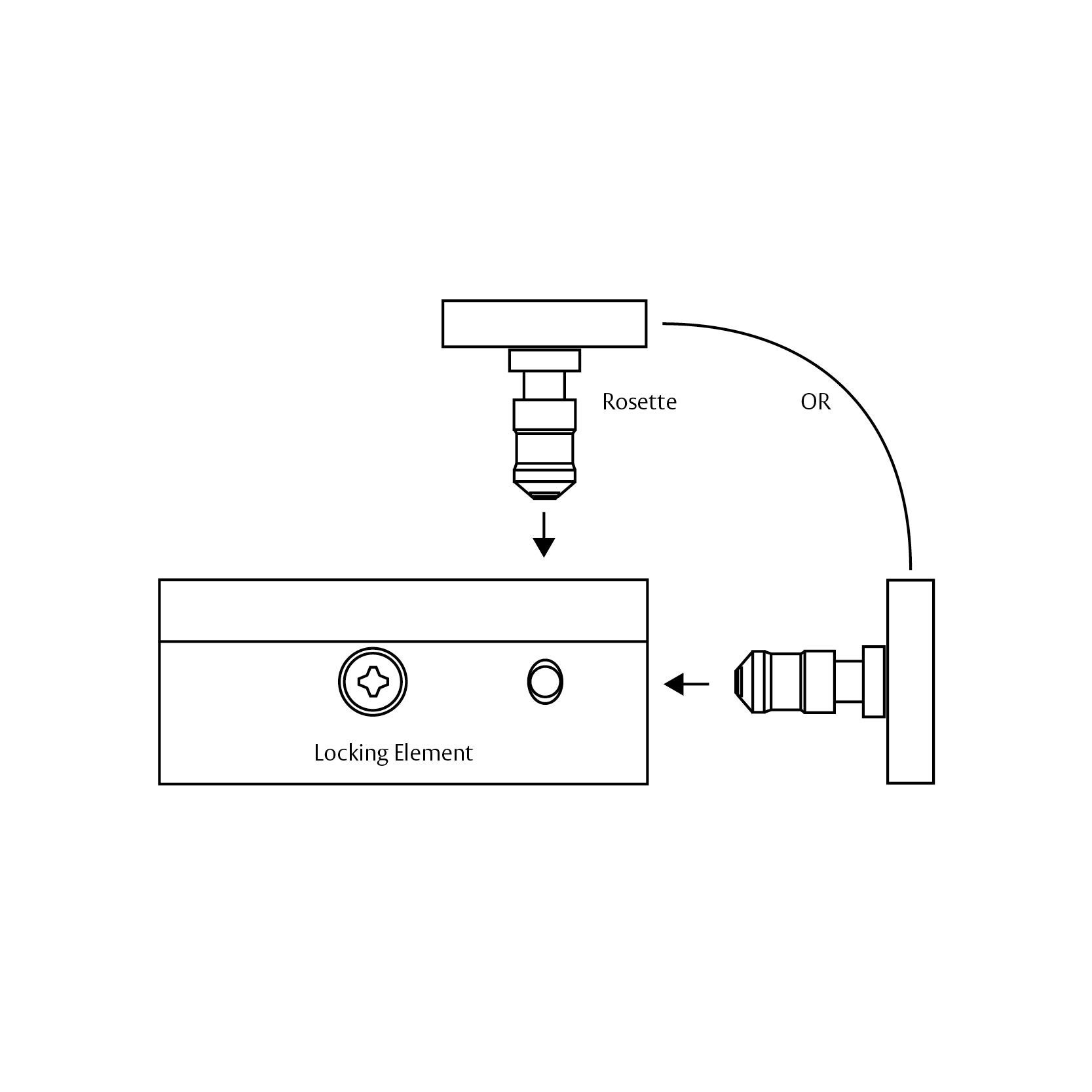

  • Versatile installation either at the side or front of cabinets
  • SecuriCare three-year, no-fault, no questions asked warranty
tab_1686590669
Electrical
  • Battery Backup : No
  • Voltage : 12/24 Dual Voltage
  • Current 12v AC : 140
  • Current 12v DC : 260
  • Input Voltage : 12/24 Dual Voltage
  • Monitoring Options : Locked State Monitoring
  • Monitoring Installation : Field Installable
  • Monitoring Type : Switch
  • Motor Duty [DC] : Continuous
  • PoE Friendly : Yes
  • Power Source : Hardwired
Environmental
  • Maximum Operating Temperature (° F) : 104
  • Minimum Operating Temperature (° F) : 14
Certifications & Listings
  • Class of Protection : IP 20
  • Fail Safe | Fail Secure : Field selectable fail safe/fail secure
  • Certified : No
Application
  • Door Material : Wood|Glass
  • Door Type : Swinging|Sliding
  • Installation Point : Side,Front
  • Handing : Non-handed
Strength & Durability
  • Preload Capable : No
  • Static Strength (lbs) : 200
  • Tamper Resistant : No
Documents
HES 610 Cabinet Locks Installation Instructions
HES 610 Series Cabinet Lock Catalog Page
HES Cabinet Locks Overview Brochure
